BSS AR-133 Active DI Box

BSS AR-133 Active DI Box

241 Telah Dilihat

Harga saat ini adalah: Rp 2.825.742. Harga aslinya adalah: Rp 3.532.178.

Ketersediaan: Stok habis

SKU: BSSAR133 Kategori:
Dapatkan 28257 M-Points Pada Pembelian Produk Ini!

Deskripsi Produk

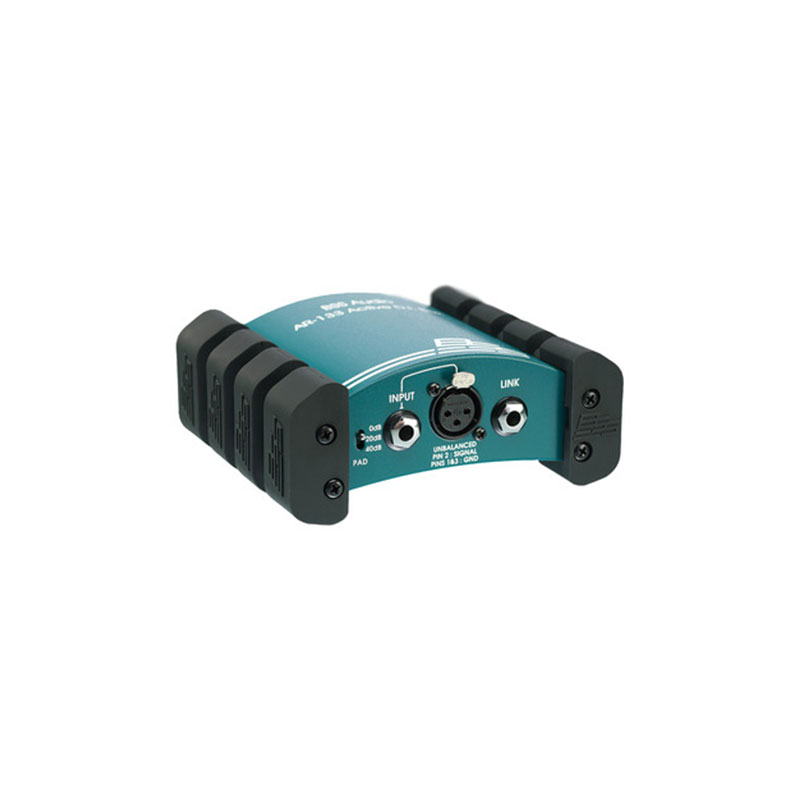

BSS AR-133 Active DI Box

The unit includes phantom power and battery supplies as standard. Should the phantom power from the console fail or be accidentally switched off, the AR-133 automatically switches over to the internal 9V battery providing uninterrupted use.

The unit is housed in a rugged aluminium extrusion case, with robust polyurethane end-cheeks which give the AR-133 a very distinctive look.

Specifications

Input Impedance 1 MOhm (pad at 0dB), 47 kOhm (pad at -20dB or -40dB)
Max Input 9dBu (pad at 0dB), 29dBu (pad at -20dB), 49dBu (pad at -40dB)
Input Connectors Two Parallel 1/4″ jack connectors (Tip Hot ve, Sleeve ground), and a parallel XLR connector (unbalanced) (Pin 2 Hot ve, Pin 1 & 3 ground)
Output Transformer Balanced
Max Output 8dBu into 600 Ohms or greater
Output Connectors XLR3-32 or equivalent
THD < 0.005% at 1khz, 0dbu output
Noise < -105db unweighted, 22hz-22khz, rms*
Frequency Response 30Hz to 20kHz, 0dB/-1dB
Main/Standby battery 9 volt PP3 type, preferably alkaline
Power Consumption on phantom: less than 7.5mA, on battery: less than 2mA.
Phantom Power 20 volts DC to 48 volts DC
Unit Weight 650 gms, excluding batteries
Dimensions 59 mm x 124 mm x 143 mm (2.3″ x 4.9″ x 5.6″)



Berat 1 kg
