Deskripsi Produk

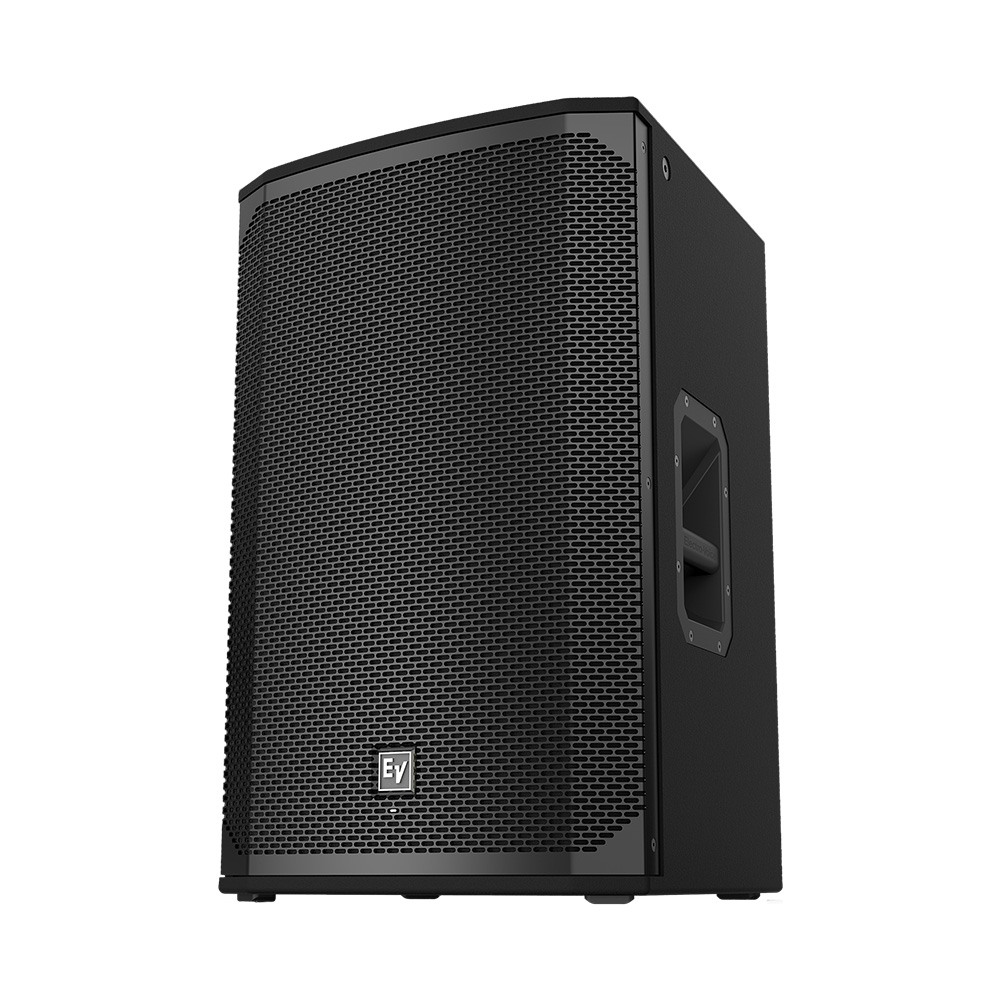

EKX-15P
15″ powered loudspeaker
- QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
- High-efficiency 1500 W Class D power amplifier delivers up to 134 dB peak SPL on the EKX-15P via high-sensitivity transducers designed and engineered by EV.
- Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
- Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
| Frequency Response (-3 dB) |
55 Hz – 18 kHz¹ |
| Frequency Range (-10 dB) |
48 Hz – 20 kHz¹ |
| Maximum SPL |
134 dB² |
|
|
| Coverage (H x V) |
90″ x 60″ |
| Power Rating |
1500 W |
| LF Transducer |
EVS-15M 381 mm (15 in) |
| HF Transducer |
DH-1M 1-inch titanium compression driver |
| Crossover Frequency |
1.7 kHz |
| Connectors |
(1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
| Enclosure |
15 mm plywood with EVCoat |
| Grille |
18 AWG steel with powdercoat |
| Suspension |
(8) M10 threaded mounting points |
| Dimensions (H x W x D) |
685 mm x 432 mm x 429 mm (27 in x 17 in x 17 in) |
| Net Weight |
24.4 kg (53.9 lb) |
| Shipping Weight |
29.5 kg (65.0 lb) |
| Power Consumption |
1.8 A³ |
