Deskripsi Produk

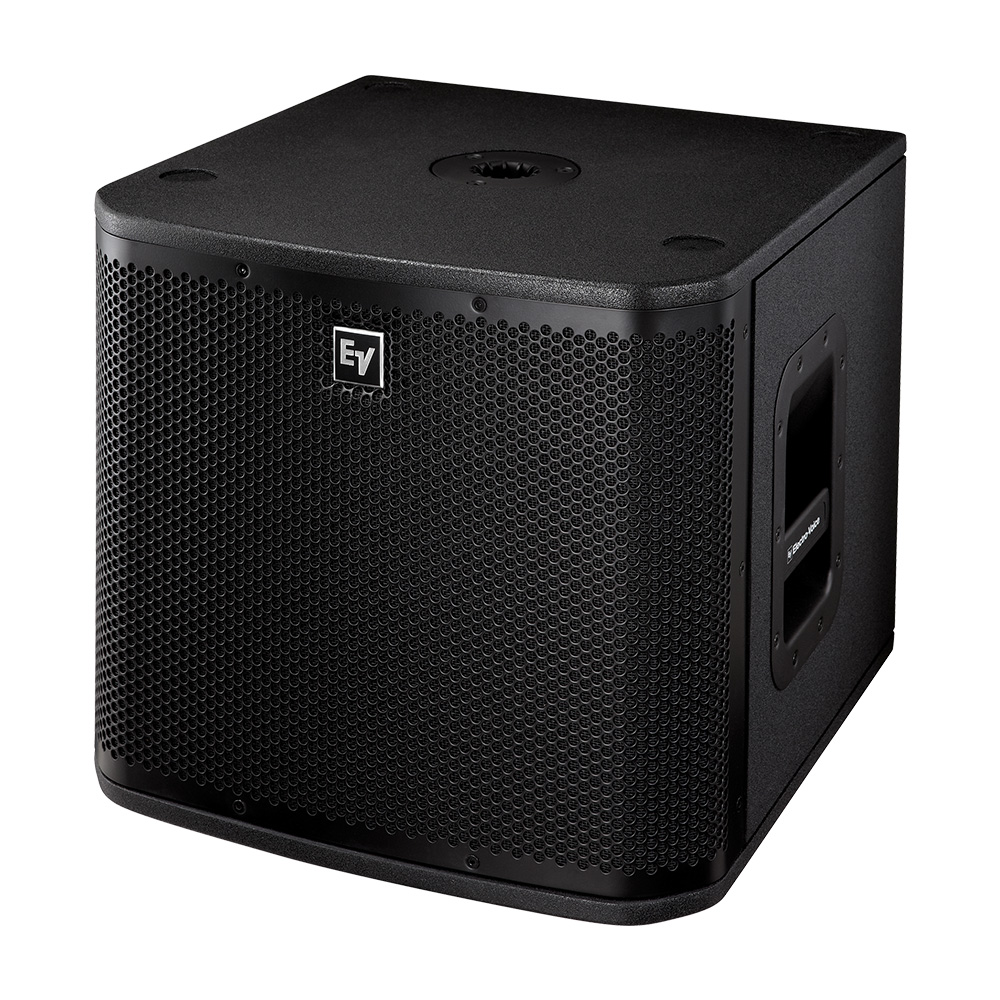

ZXA1-Sub
12″ powered subwoofer
- 15mm Plywood Enclosure, Internally Braced, with Textured Paint
- EVS-12S 305mm (12”) Woofer for Powerful, Engaging Bass Response
- Class D Lightweight Amplifier
- Pole Mount for Full-Range Systems
- Dual XLR Inputs and Outputs
- Switchable EQ Modes for Different Applications
- LED indicators for Power On and Limit
Extending the ZXA1’s size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700 W of self-powered punch into a low-profile wood enclosure. Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance.
| Freq. Response (-3dB) |
53Hz-93Hz¹ |
| Freq. Range (-10dB) |
44Hz-118Hz¹ |
| Max. Measured SPL |
126dB¹, ² |
|
|
| Coverage (Horiz. x Vert.) |
Omnidirectional |
| Power Rating |
700W |
| LF Transducer |
(1) EVS-12S, 305mm (12″) Woofer |
| Crossover Frequency |
100Hz |
| Connectors |
(2) XLR Stereo Input, (2) XLR Stereo Output |
| Enclosure Material |
9-ply, 15mm Plywood, Internally Braced, with Textured Paint |
| Grille |
16GA Steel with Black Powdercoat |
| Mains Requirements |
120V: 90V-132V, 1.0A³ , 50-60Hz
230V: 190V-264V, 0.6A³, 50-60Hz |
| Dimensions (H x W x D) |
400mm x 444.5mm x 457.2mm (15.75″ x 17.50″ x 18.00″) |
| Net Weight |
20.9kg (46.0lbs) |
| Shipping Weight |
26.5kg (56.5lbs) |
