LD Systems CURV 500 I AMP
LD Systems CURV 500 I AMP - Gambar 2
LD Systems CURV 500 I AMP - Gambar 3

LD Systems CURV 500 I AMP

220 Telah Dilihat

Harga saat ini adalah: Rp 16.720.000. Harga aslinya adalah: Rp 20.900.000.

Ketersediaan: Tersedia

Rp
SKU: LDCURV500IAMP Kategori: Brand:
Dapatkan 167200 M-Points Pada Pembelian Produk Ini!

Deskripsi Produk

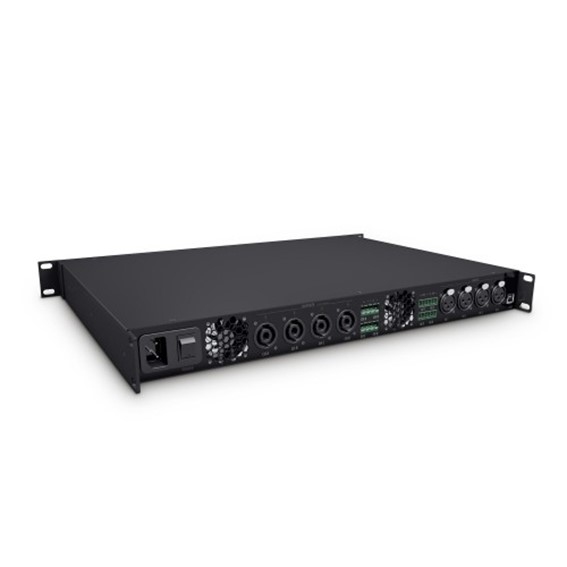

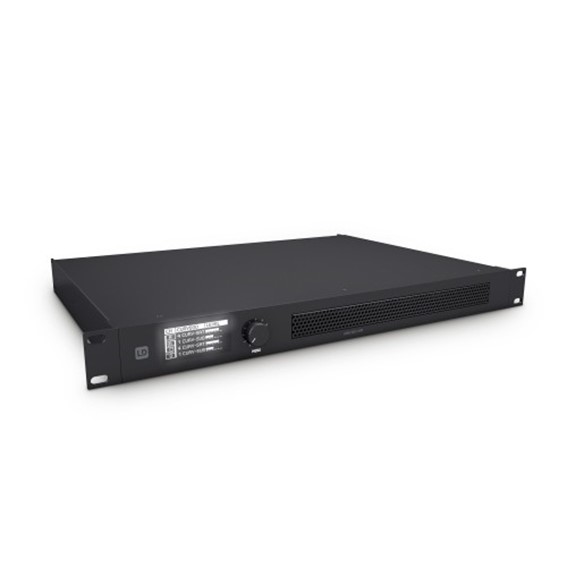

LD Systems CURV 500 I AMP

4-Channel Class D Installation Amplifier

  • 4 channels with DSP control
  • Purpose-designed for CURV 500® installations
  • Low-profile 1U 19″ rackmount construction
  • Drives up to six CURV 500® satellites or one CURV 500® ISUB subwoofer per channel
  • Single push encoder operation
  • High-contrast OLED display
  • Temperature controlled low-noise fan
  • High-efficiency switch mode power supply
  • Only 6.8 kg

Purpose-designed for CURV 500® installations the I AMP is a low-profile 4-channel Class D rackmount amplifier with high-efficiency switch mode power supply and 10 Hz – 22 kHz frequency response. Sporting DSP control with presets for various satellite and subwoofer configurations, delay and parametric EQ each channel delivers 240 watts RMS at 4 ohms with less than 0.01% THD.

Operating the I AMP is simple and intuitive with just a single push encoder and easily readable high-contrast OLED display. It features a soft start circuit, DC, overcurrent, thermal and short circuit protection plus a temperature controlled low- noise fan. Input is on balanced XLR and terminal block connectors. The I AMP is capable of driving up to six CURV 500® satellites or one CURV500ISUB subwoofer per channel providing terminal block and speakON-compatible output connectors.



Specifications

General
Product type Power Amplifiers
Type Installation Power Amplifiers
Rated ouput power (1kHz @ 2,7 Ohms) 4 x 240 W
Rated ouput power (1kHz @ 4 Ohms) 4 x 240 W
Rated ouput power (1kHz @ 8 Ohms) 4 x 120 W
Rated ouput power (1kHz @ 16 Ohms) 4 x 60 W W
Output circuitry Class D
Frequency response 10 – 22000 Hz
Total Harmonic Distortion (THD) < 0,01 %
Protection circuits DC, over-current, short circuit, soft start, thermal overload
Controls Push encoder
Indicators OLED Display
Line inputs 4

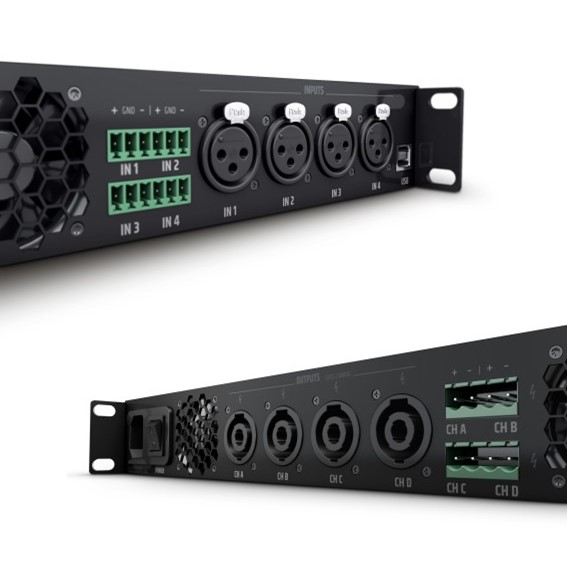

Line input connectors Terminal block, XLR
Loudspeaker outputs 4
Speaker output connections Speakon compatible, Terminal block
Cooling temperature controlled low-noise fan, noiseless in idle mode
Operating voltage Switching power supply
Power consumption @ full load 1100W
Operating voltage 100 V AC – 240 V AC, 50 – 60 Hz, Switch mode power supply with power factor correction (PFC)
Width 482 mm
Height 44 mm
Depth 420 mm
Weight 6,8 kg
Berat 2 kg
